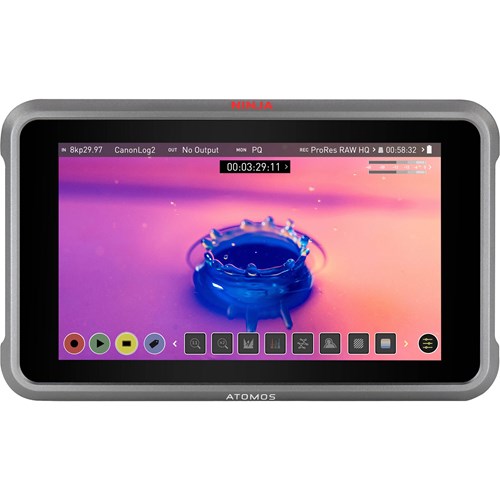

ATOMOS Ninja V+

Código: 0814164022569
ATOMOS
ATOMOS Ninja V+
5” 8Kp30 4Kp120 1000nit HDR HDMI Monitor-Recorder Ref. ATOMNJVPL1

675,00 €IndisponívelEntrega prevista dia 25 dezembro

Principais Caracteristicas:

  • Capte sem limitação em RAW até 8Kp30
  • Revele a beleza do invisível com HFR contínuo até 120p em 4K RAW
  • Display HDR de 1000nit 5” com suporte AtomHDR para Loginputs e 3D Luts
  • HDMI 2.0 oferece suporte para entradas de vídeo de uma grande variedade de dispositivos até 4Kp60 e HD 120p
  • Hardware que cresce com suas necessidades por meio do AtomXexpansion para conectividade adicional e SYNC sem fio
  • Flexibilidade de escolha de codec de ProRes RAW, ProRes, DNx e H.265
  • Grave em SSD de 2,5" no Master caddy, SSDmini e CFast II via adaptador AtomX CF
  • Kit de viagem em EVA e porta deslizante de 5" para armazenar e limpar sua tela Ninja

* Preços incluem IVA à taxa (legal) em vigor

The Ninja V+ is the next stage in the evolution of the multi-award winning Atomos Ninja, delivering up to 8Kp30 and 4Kp120 continuous recording in Apple ProRes RAW while inheriting HDR, 4Kp60 RAW and video as well as HDp120 slow motion from it’s little brother, Ninja V.


With the ability to capture in 8Kp30 and 4Kp120, the Ninja V+ allows you to stay ahead of the game and ensure that you have the flexibility to grow your system as projects demand. Future proofed quality and formats allow you to stay compatible with newly released and existing cameras, in a world where new cameras are released frequently, and technology is advancing at an incredible pace.


The Ninja V+ takes advantage of new Atomos Silicon AtomIC3, AtomOS 10 and the incredible efficiency of ProRes RAW to deliver these increased resolutions and frame rates.

The new formats also integrate seamlessly into the timeline of your existing ProRes RAW or ProRes projects, without huge storage or processing overheads.


Ready For The Future
The Ninja V+ and Canon R5 deliver a compact and configurable 8K RAW and HDR camera system that is very affordable when compared with other 8K setups. The possibilities you have when shooting in 8K are a true game changer, as Canon and Atomos have just democratized 8K for the masses with no compromise in quality.


More Power. Less Weight.
Pairing the Ninja V+ with the Canon R5 gives you a powerful yet compact 8K camera package that fits in your hands and can be flexibly built out to suit your needs. It can become the basis of a compact cinema rig or be flown on gimbals and stabilizers.


It’s also easy to create an incredibly lightweight setup, as the Canon R5 with a 24mm Cine lens, Ninja V+, NPF battery and media comes in under 3KG/7lb, which can be easily carried by a wide range of aerial drones, as well as vehicles and robot arms.


Extra Resolution Gives You Creative Flexibility
With the broad canvas of 8K resolution, your options for creative crops into a region of interest allow you to extract multiple 4K shots from a single camera angle. This allows you to create additional shots for cutaways to break up the edit, that are much higher resolution than if the shots were extracted from a single 4K source.


Stabilize Without Compromise
The incredible resolution of 8K video means that even after cropping into the image as part of the stabilization process, the final shot will likely still have a resolution of 4K or even 6K. This means that it can integrate with your other 8K footage on the timeline, and still look great.


Razor Sharp Screenshots
High resolution screenshots from 8K full frame cameras also offer the ability to create scene plates for small scale virtual production stages or use in other content platforms.

See The Unseen

The Ninja V+ allows you to capture content at up to 4Kp120 in pristine ProRes RAW for high frame rate video that has exceptional image quality. This is a great alternative to using the internal compressed codecs on your camera for high frame rate recording, as they can apply higher levels of colour compression and subsampling, leading to potential artifacts or limitation in the edit/grade.

Z CAM E2 / E2-M4 Series Cameras

Capture and visualize the unseen with 4Kp120 recording at up to ProRes RAW from the Ninja V+ Z CAM E2 /E2-M4 models, with more models to follow. Fully harness the dynamic range of the sensor, capture every aspect of motion and movement directly via RAW over HDMI. Add to this the benefit of being able to play back the high frame rate video captured on the Ninja V+ at various play back speeds to preview the adjustments you can make on your NLE timeline.

An Incredible Codec Arsenal

With the flexibility of providing options for RAW, visually lossless edit ready files, and proxy/sharable files, you have the ability to scale your needs for quality, and file size.


•ProRes RAW – supporting 16bit RAW outputs from cameravia HDMI and optionally via SDI
•ProRes - An industry standard edit-ready codec from Applewith scalable levels of compression.
•Avid DNx - An industry standard edit-ready codec for Avideditors with scalable levels of compression.
•H.265 (HEVC) - The highly efficient compressed codecallows you to create high-quality files with a low bit rate andsmall file size for sharing. You can also create 4K HDR 10-bitdeliverables and have the option to ‘bake in’ LUTs to achievethe final pixel LOOK without the need to grade the footage.


AtomX Modules

AtomX SDI

Upgrade your Connection optionsThe AtomX SDI Expansion Module locks into place via the modular expansion slot and adds the quality and convenience of SDI connectivity to your Ninja V+, which allows you to monitor and record SDI video up to 4Kp60 from a range of professional cameras and video sources.

HDMI / SDI

Cross Conversion

When an AtomX SDI Expansion module is attached to your Ninja V+, you can cross convert HDMI and SDI signals. This means that where you have an HDMI source connected to your Ninja V+, you can output an SDI signal from your AtomX SDI Expansion module.

AtomX SYNC

Making multi-camera mainstream

The AtomX SYNC module brings wireless timecode, sync and control technology to the Ninja V+, and you can connect multiple AtomX SYNC enabled Ninja V+ units to create a Timecode Systems powered multi-camera sync network. Remotely trigger frame accurate record start/ stop recording, monitor, battery and disk capacity information from the SYNC server configured Ninja V+. The SYNC module provides continuous power to keep your Ninja V running while you change the main battery or DC input

MSRP
USD 1499
EUR 1499
Physical Specifications
Dimensions (W x H x D mm) 151 x 91.5 x 31 mm
Weight 360 g / 12.7 oz
Mount points 1 x Anti rotation 1/4" / 3/8 top and bottom
Environmental
Ambient operating temperature Up to 40 Degrees Celsius
Construction and Control
Body Aluminium with ABS plastic
Cooling Actively controlled fan and Heat Sink
Tally light Rear and front
Multi-function button Power / lock Screen
AtomXpansion slot Yes
Power
Input voltage 6.2V to 16.8V
Operating power 5.8-7.2v
Compatible batteries NPF L series
Built in battery No
Battery Run time (Record) 5200mAh - up to 2hrs (monitor & record 4K 60p)
Continuous power Via Optional AtomX SYNC Module
DC in connector Via DC Jack on Battery eliminator
Dtap Via Battery Eliminator and optional DTap to DC cable
Display
Touchscreen SuperAtom IPS panel (capacitive touch)
Size 5.2"
Resolution 1920 x 1080
PPI 427
Bit depth 10Bit (8+2 FRC)
Backlight Type Edge lit
Brightness (cdm2 / nits) 1000 +/- 10%
Aspect ratio 16 : 9
De-interlace mode I > P and PSF > P
Color Gamut Rec.709
Calibration support Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)
Color Pipeline
Gamma Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Olympus OM Log, Lecia L Log
Gamut Bt2020, DCI P3, PDCI p3 65 Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 JVC LS300 Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display .Cube Format
3D LUT Down Stream Loop out
3DLUT 50/50 Yes
Monitoring Modes Native / HLG / PQ / 3D LUT
HDR output Conversion Log / HDR to HLG / PQ / Dolby Vision
Video Input
HDMI 1 x HDMI (2.0) 4k p60
HDMI RAW Apples ProRes RAW up to 8k
SDI Optional via AtomX SDI module
SDI RAW Optional Activation Key required
Bit Depth 8/10Bit Video / RAW up to 12Bit
Video Chroma Subsampling 420 and 422
HDCP copy protection Not supported
Metadata
HDMI RAW - white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut
SDI Optional via AtomX SDI module
Video Output
HDMI 1 x HDMI (2.0) 4k p60
SDI loop out Optional Via AtomX SDI module
SDI Play out Optional Via AtomX SDI module
Video Chroma Subsampling 422
Bit Depth 10Bit Video
Web Streaming
USB UVC Optional Via Connect 4k
Video Signal Conversion
HDMI to SDI Optional Via AtomX SDI module
SDI to HDMI Optional Via AtomX SDI module
Audio In/Out
Audio Quality 24/48kHz
Audio Codec PCM
HDMI 8ch 24Bit, input dependent
SDI 12ch 24Bit, input dependent
Analogue Audio in 3.5mm 2ch.
Analogue Audio Out 3.5mm 2ch.
Headphone out 3.5mm 2ch.
Timecode / Sync
Embedded HDMI
Time of day Yes, Time and Date
LTC via 3.5mm audio Jack input (Requires post processing)
Wireless SYNC Via Optional AtomX SYNC Module
Resolution and Frame Rates (Record, Monitor & Playback)
8k RAW Only up to 30p via HDMI
6k RAW Only up to 30p via HDMI
5k RAW Only up to 30p via HDMI
4k DCI 23.98/24/25/29.9/30/50/59.94/60p - HFR 100/120 via RAW over HDMI & SDI on selected cameras
4k UHD 23.98/24/25/29.9/30/50/59.94/60p
2K DCI 2046 x 1080 Optional via AtomX SDI module
Anamorphic 3.5k: RAW up to 60p (from supported cameras only)
FHD 1920 x 1080 Progressive 23.98/24/25/29.9/30/50/59.94/60/100/120p
FHD 1920 x 1080 PsF converted to P and looped out PsF
FHD 1920 x 1080 Interlaced 23.98/24/25/29.9/30/50/59.94/60i
1280 x 720p 50/59.94/60p
Recording CODEC
Apple ProRes RAW ProRes RAW, HQ (Free activation key via visit my.Atomos.com)
Apple ProRes LT, 422, 422HQ
Avid DNxHD DNxHD 220x,220,145,36 (Free activation key via visit my.Atomos.com)
Avid DNxHR LB, SQ, HQ, HQX. (Free activation key via visit my.Atomos.com)
H.265 LQ,MQ,HQ in 8/10Bit, 422 and 420 Free activation key via visit my.Atomos.com)
Playback
Playlist Yes, Create customer play lists from full or sub clips
Loop Yes, with user customisable in / out markers
Apple ProRes Raw Yes, recorded clips
Apple ProRes Yes, with Linear PCM audio
Avid DNx Yes, with Linear PCM audio
H.265 Yes, recorded clips
Recording functions
Pre-roll record Yes (HD 8s, 4K 2s) - Not available in RAW
Timelapse Yes
Multi Input / Switching
Supported media
Master Caddy I Not compatible
SSDmini Native Size and Fit
CFast II Via Supported cards via optional SSDmini CFAST II Adaptor
File Naming Unit Name - Scene/Shot/Take
File System ExFAT
On screen tools
Waveform Yes, 3 size / Position
RGB parade Yes, 3 size / Position
Vector scope Yes, 2 size / Position
1 x Zoom Yes. 1:1 Pixel mapping for 4k
2 x Zoom Yes
Focus peaking Colour selected / threshold setting / colour
False colour Yes, with Scale
Zebra Yes, Adjustable
Isolate color channel Blue Only
Cine Frame Guides 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides 9:16, 1:1, 191:1, 4:5
Safe areas Action and Graphic
Grid markers 9 grid
Anamorphic desqueeze 1.25x 1.33x , 1.5x ,1.8x ,2x
Display Flip Vertical Only
Onboard Signal Processing
Pulldown Removal 24/25/30pSF > 24/25/30p (2:2 pulldown)
4K UHD Downscale for HD Loop out - 4K UHD to FHD
DCI Crop Loop out - 17:9 to 16:9 Crop
Remote control
HDMI Auto HDMI Trigger, Supported Protocols - Canon, Sony
SDI SDI trigger camera selectable
Serial 2.5mm Jack LANC control and calibration via optional USB to serial cable
Bluetooth LE Via optional AtomX SYNC module
Wireless RF Via optional AtomX SYNC module
External Device Control
Serial 2.5mm Jack Camera control for supported cameras via Optional USB to Serial Cable
Bluetooth LE Via optional AtomX SYNC module to compatible devices
Wireless RF Via optional AtomX SYNC module to compatible devices
Supported Applications
XML Cut tag EDL in FCPX XML
Apple ProRes RAW Apple FCPX, Adobe Premier, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light.
Video Codecs All Applications with support for Apple ProRes and Avid DNX in .MOV wrapper
What’s in the box
Accessories included Ninja V +, EVA Carry case, 5" Protective Monitor sleeve, Battery eliminator, international DC power supply, 1x MasterCaddy II and QuickStart Guide
Optional extras Sunhood, DC to DTap, Power Kit, HDMI Cables, USB to Serial cable, AtomX SYNC, SDI modules
Warranty
Standard 1 year. Extended to 3 years on product registration
Target use / User
