THE 10-TRACK BLOCKBUSTER
ZOOM F8N PRO WITH 32-BIT FLOAT RECORDING
“I dream sonically, and then I go look for it. That’s why it's so important to have a recorder that I can rely on.”

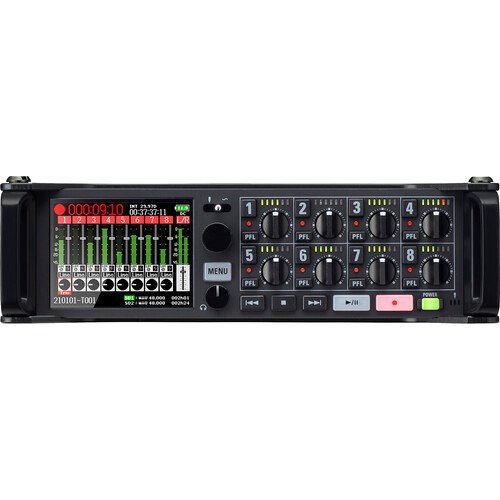

TOUR THE F8N PRO
-
DISPLAY
The F8n Pro's 2.4-inch full-color backlit display with monochromatic mode makes field work equally easy in low or direct lighting.
-
SLATE SWITCH
The F8n Pro's has a built-in slate mic for recording comments as well as the ability to output a variable frequency tone signal.
-
TRANSPORT CONTROLS
The control panel features stop, search forward and search backward keys as well as illuminated play/pause and record buttons.
-
INPUT CONTROLS
Each input features a built-in preamp with a dedicated gain control knob and a 6-segment LED level meter.
-
USB PORT
A USB port enables firmware updates, file transfer, and allows the F8n Pro to be used as an 8-in/4-out USB audio interface operating at sample rates up to 32-bit float / 96kHz.
-
INPUTS
The F8n Pro provides 8 discrete inputs with locking Neutrik XLR/TRS combo connectors, allowing you to plug in any microphone, wireless pack, or line level device. Any input can also be used as a camera return.
-
SD CARD SLOTS
Record on two SD/SDHC/SDXC cards, up to 1 TB each, simultaneously, allowing you to instantly backup or split recordings.
-
HEADPHONE JACK
The unit’s 1/4" headphone jack also comes with dedicated volume control.
-
MAIN OUTPUTS
The F8n Pro provides four outputs: two Main Outs (on balanced TA3 mini-XLR jacks) for connection to external mixers and processing devices; and two Sub Outs (on a single unbalanced 1/8" stereo mini-jack) for connection to a camera. The F8n Pro also provides a selectable +4 dBu output.
-
DC POWER
The F8n Pro can be powered by a 9-18V external DC power supply.
-
TIME CODE IN/OUT
Timecode can be generated internally or transmitted from an external timecode generator.
-
10-PIN MIC CONNECTOR
Our proprietary 10-pin connector enables the use of interchangeable Zoom mic capsules, with optional extension cables that allow for remote positioning
INPUTS
INPUT 1 - 8 |
Connectors: |
XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot) |
INPUT SOURCE SET TO MIC |
Input gain: |
+10 – +75 dB |
|
Input impedance: |
3 kΩ or more |
|
Maximum input level: |
+4 dBu (at 0 dBFS) |
|
Phantom power: |
+24/+48 V, 10 mA maximum per channel |
EQUIVALENT INPUT NOISE |
|
-127 dBu or less (A-weighted, +75 dB input gain, 150 Ω input) |
FREQUENCY RESPONSE |
|
20 Hz – 60 kHz, +0.5 dB/-1 dB (192 kHz sample rate) |
A/D DYNAMIC RANGE |
|
113 dB typ. (-60 dBFS input, A-weighted) |
CROSSTALK |
|
-90 dB or less (between adjacent channels, 1 kHz) |
MIC IN |
|
ZOOM mic capsule input (use disables Inputs 1/2) |
SLATE MIC |
|
Built-in mic for voice memos can be assigned to tracks freely |
OUTPUTS
MAIN OUT 1/2 |
Connectors: |
TA3 connectors (balanced output, 2: hot) |
|
Output impedance: |
150 Ω or less |
|
Reference output level: |
-10 dBV (normal output level) |
|
|
+4 dBu (line output level) |
|
|
1 kHz, 600 Ω load |
|
Maximum output level: |
+10 dBV (normal output level) |
|
|
+24 dBu (line output level) |
|
|
1 kHz, 600 Ω load |
SUB OUT 1/2 |
Connectors: |
3.5 mm stereo mini (unbalanced output) |
|
Output impedance: |
100 Ω or less |
|
Reference output level: |
-10 dBV (normal output level) |
|
|
-40 dBu (mic output level) |
|
|
1 kHz, 10 kΩ load |
|
Maximum output level: |
+10 dBV (normal output level) |
HEADPHONE |
Connector: |
1/4 inch stereo (unbalanced output) |
|
Output impedance: |
18 Ω or less |
|
Maximum output level: |
100 mW + 100 mW (32 Ω load) |
D/A DYNAMIC RANGE |
|
105 dB typ. (-60dBFS input, A-weighted) |
RECORDING MEDIA
|
Dual SD card slots: |
SDHC cards: 4 GB – 32 GB |
|
|
SDXC cards: 64 GB – 1 TB |
RECORDING FORMATS
WHEN WAV SELECTED |
Supported formats: |
44.1, 47.952, 48, 48.048, 88.2, 96 and 192 kHz |
|
|
16-bit linear, 24-bit linear and 32-bit float |
|
|
Mono/stereo/2-10 ch poly |
|
|
BWF and iXML |
|
Maximum simultaneous recording tracks: |
10 (8 inputs + stereo mix) |
|
|
8 (at 192 kHz sampling rate) |
WHEN MP3 SELECTED |
Supported formats: |
128, 192 and 320 kbps |
|
|
44.1 and 48 kHz |
|
|
ID3v1 tags |
|
Maximum simultaneous recording tracks: |
2 |
RECORDING TIME
|
Using a 32GB card: |
23:08:00 (48 kHz/32-bit float stereo WAV) |
|
|
5:47:00 (192 kHz/32-bit float stereo WAV) |
TIMECODE
|
Connector: |
BNC |
|
Modes: |
Off, Int Free Run, Int Record Run, Int RTC Run, Ext and Ext Auto Rec (audio clock can be synchronized to timecode) |
|
Frame rates: |
23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND and 30D |
|
Precision: |
±0.2 ppm |
|
Supported input levels: |
0.2 - 5.0 Vpp |
|
Input impedance: |
4.6 kΩ |
|
Output level: |
3.3 Vpp |
|
Output impedance: |
50 Ω or less |
POWER SUPPLIES
|
AA batteries: |
8 (alkaline, nickel-metal hydride or lithium) |
|
AC adapter: |
ZOOM AD-19, DC 12 V/2 A, center plus |
|
External DC power supply: |
HIROSE HR10A-7R-4S 4-pin connector (1 pin: -, 4 pin: +), 9–18 V |
ESTIMATED CONTINUOUS RECORDING TIMES:
• THESE VALUES ARE ONLY ESTIMATES. |
2 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32Ω headphones, PHANTOM OFF |
Alkaline batteries: about 7 hours |
• THESE VALUES ARE BASED ON IN-HOUSE TESTING METHODS. |
|
NiMH batteries (2500 mAh): about 8 hours |
• THEY WILL VARY GREATLY ACCORDING TO USE CONDITIONS. |
|
Lithium batteries: about 13.5 hours |
|
8 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32Ω headphones, PHANTOM OFF |
Alkaline batteries: about 4.5 hours |
|
|
NiMH batteries (2500 mAh): about 6 hours |
|
|
Lithium batteries: about 9.5 hours |
|
8 channels to SD 1/2 192kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT ON, TIMECODE Int Free Run, LED/LCD brightness 60, 32Ω headphones, PHANTOM 48 V |
Alkaline batteries: about 0.5 hours |
|
|
NiMH batteries (2500 mAh): about 1 hour |
|
|
Lithium batteries: about 2 hours |
DISPLAY
|
|
2.4 inch full-color LCD (320 × 240) |
USB
|
Connector: |
Mini-B |
|
|
• Use a USB cable that supports data transfer. |
|
|
• USB bus power operation is not supported. |
MASS STORAGE OPERATION |
Class: |
USB 2.0 High Speed |
MULTI TRACK AUDIO INTERFACE MODE OPERATION (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC) |
Class: |
USB 2.0 High Speed |
|
Specifications: |
Sampling rate: 44.1/48/88.2/96 kHz |
|
|
Bit depth: 24-bit linear/32-bit float |
|
|
8-in/4-out |
STEREO MIX AUDIO INTERFACE MODE OPERATION (NO DRIVER REQUIRED) • SUPPORTS AUDIO INTERFACE OPERATION WITH IOS/IPADOS DEVICES |
Class: |
USB 2.0 Full Speed |
|
Specifications: |
Sampling rate: 44.1/48 kHz |
|
|
Bit depth: 16-bit linear |
|
|
2-in/2-out |
AUDIO INTERFACE OPERATION WITH RECORDING (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC) |
Class: |
USB 2.0 High Speed |
|
Specifications: |
Sampling rate: 44.1/48 kHz |
|
|
Bit depth: 24-bit linear/32-bit float |
|
|
10-in/4-out |
POWER CONSUMPTION: |
|
15 W |
EXTERNAL DIMENSIONS: |
|
7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H) |
WEIGHT: (INCLUDING BATTERIES) |
|
1200 g |
NOTE: 0 DBU = 0.775 VRMS |
|
