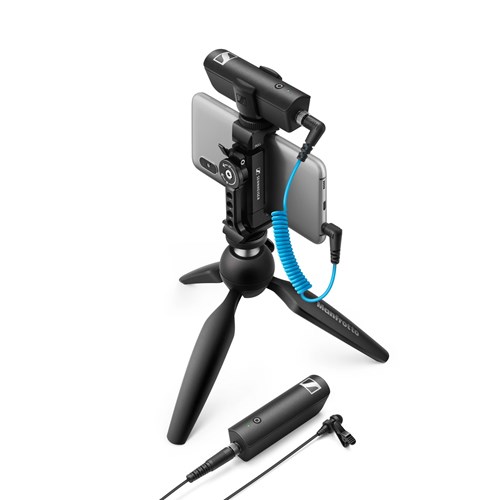

SENNHEISER XS Wireless Digital Portable Lav Mobile Kit

Designed to travel

Compact and convenient, the essentials in this kit are everyday companions for the creator on the move. The Smartphone Clamp and Manfrotto PIXI allow for a fast and stable set-up while the XSW-D Portable Lavalier Set enhances your audio in any environment. Small enough for pockets and pouches, the XSW-D Portable Lav Mobile Kit is designed to go everywhere you go.

Flexibility and control

Dialing in your frame is all about the details, and the adjustability of the smartphone clamp and Manfrotto PIXI make it easier than ever. A locking swivel-joint on the Smartphone Clamp allows for portrait or landscape orientation while the PIXI’s push-button ball head offer further fine-tuning. Simply mount your mobile phone vertically or horizontally and use the PIXI to adjust to your liking.

Quality above all else

Robustly constructed of solid aluminum with soft rubber grips, the Smartphone Clamp is made to compliment the quality of the XSW-D Portable Lavalier Set that Sennheiser is known for. Add the durability of the Adapto-coated stainless steel Manfrotto PIXI and take advantage of a mobile kit that’s built to last.

• Dimensões

  XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm

  XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm

• Conector

  3.5 mm jack

• Frequência de resposta (Microfone)

  50 to 18,000 Hz

• Princípio transdutor (microfone)

  Pre-polarized condenser

• Nível máximo de pressão sonora

  130 dB SPL

• THD, distorção harmônica total de

  < 0.1 %

• Extensão de cabo

  approx. 1.60 m

• Peso

  XSW-D MINI JACK TX: approx. 73 g

  XSW-D MINI JACK RX: approx. 73 g

• Tempo de carga

  typ. 3 h

• Saída de áudio

  max. 12 dBu

• Padrão de captação

  Super cardioid

• Sensibilidade em campo livre, sem carga (1kHz)

  20 mV/Pa

• Temperatura de operação

  -10 °C to +55 °C (14 °F to 131 °F)

• Relação sinal-ruído

  = 106 dB

• Nível de ruído equivalente

  36 dB

• Tempo de operação

  up to 5 h

• Modulação

  GFSK with TDMA

• Codec

  aptX® Live

• Faixa de frequência

  2,400 - 2,483.5MHz

• Força de transmissão

  max. 10 mW

• Latência

  < 4 ms

• Tensão de carregamento

  typ. 5.0 V

• Frequência de resposta de áudio

  3.5 mm Jack/XLR: 80 - 18,000 Hz

  6.3 mm Jack: 10 - 18,000 Hz

O que vem na caixa

• XSW-D 3.5 mm (1/8“) transmitter
• XSW-D 3.5 mm (1/8“) receiver
• ME 2-II clip-on lavalier mic
• Cold Shoe mount
• Belt clip
• USB-A to USB-C charging cable
• Manfrotto PIXI Mini Tripod
• Sennheiser Smartphone Clamp
• Locking 3.5 mm TRS to TRS coiled cable
• Locking 3.5 mm TRS to TRRS coiled cable
